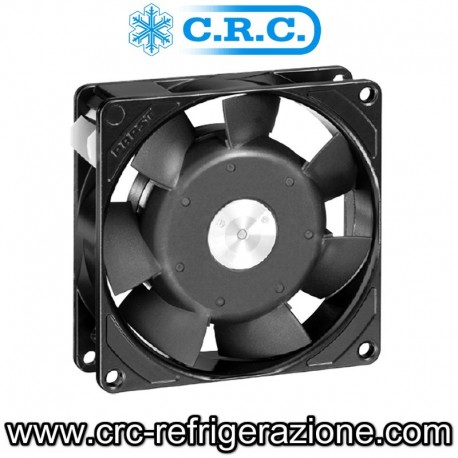

EBM PAPST FAN 3956R MOTORINO COMPACT 92 X 25
FORI ASSIALI COMPATTI, SVILUPPANO ALTE PORTATE D'ARIA CON MEDIE PREVALENZE.
IL FLUSSO D'ARIA ATTRAVERSO LE PALE DEL VENTILATORE E' PARALLELO ALL'ASSE DI ROTAZIONE.
Ventilatori Compatti
I ventilatori compatti ebm-papst, rappresentano da decenni il riferimento per il raffreddamento nel settore elettronico.
Compatti, silenziosi e altamente efficienti,si adattano alle situazioni di raffreddamento, possono essere anche collegati in rete e pilotati in modo intelligente dall’elettronica di controllo dell’apparato .
Sono disponibili in vari voltaggi e misure standard.
Ventilatori assiali compatti (EN)
Technical description
Weight |
0.280 kg |
Dimensions |
92 x 92 x 25 mm |
Impeller material |
Mineral-reinforced PA plastic |
Housing material |
Die-cast aluminum |
Part no. |
9282708100 |
Airflow direction |
Exhaust over struts |
Direction of rotation |
Counterclockwise, viewed toward rotor |
Storage |
Ball bearing |
Service life L10 at 40 °C |
55000 h |
Service life L10 at maximum temperature |
20000 h |
Cable |
2 flat plugs 2.8 x 0.5 mm. Housing with grounding lug for M4 screw. |
Motor protection |
Protected from overload by impedance protection |
Approval |
VDE, CSA, UL, CE |
